Kitchen Display Systems: Complete Guide to Going Paperless
What Is a KDS and Why Restaurants Are Switching

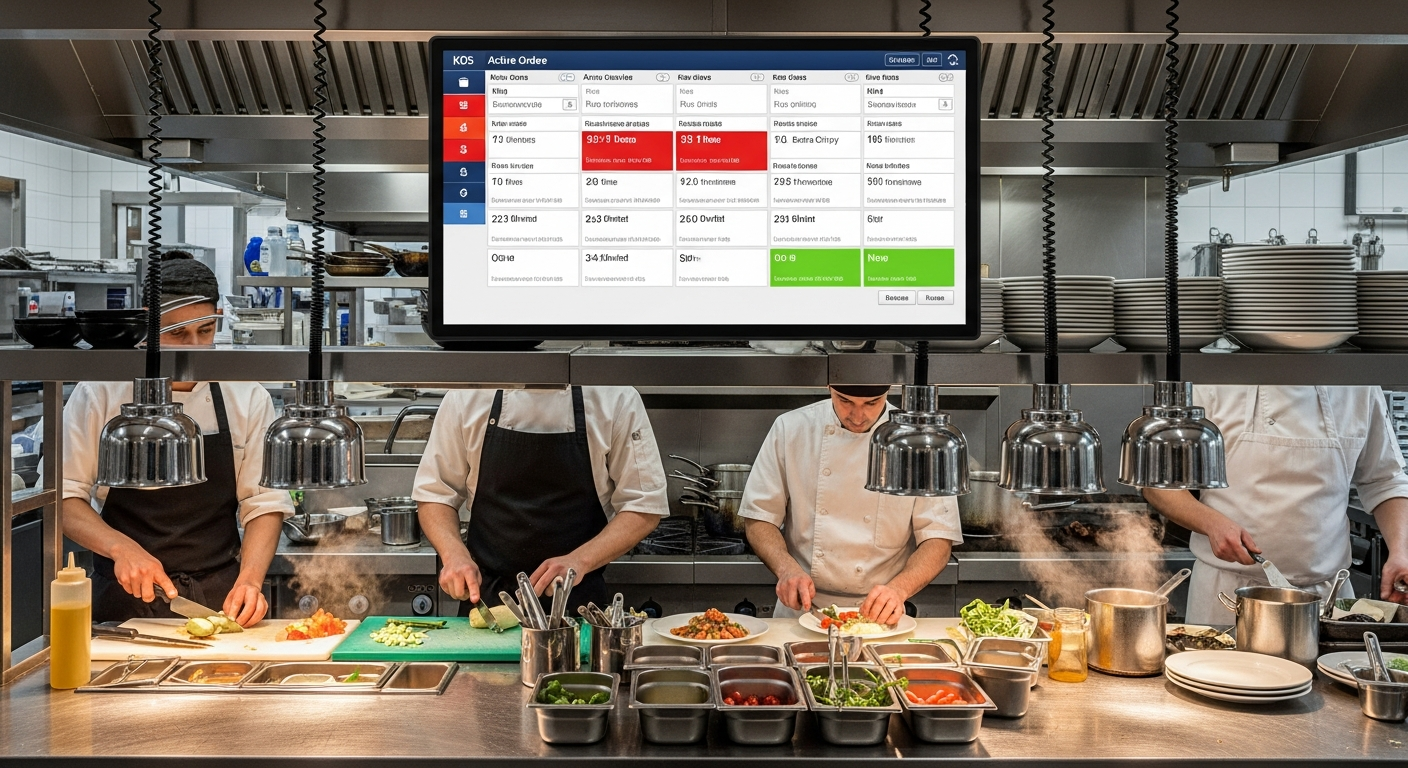

A Kitchen Display System (KDS) replaces paper ticket printers with digital screens that show orders in real time. When a server sends an order from the POS, it appears on the kitchen screen instantly — color-coded by order type, timed for urgency, and routed to the correct station.
The paper ticket problem: tickets fall off the rail, get grease-stained, pile up during rushes, and provide zero data after service. A KDS solves all of this. Orders are permanent (no lost tickets), color-coded (dine-in blue, takeout green, delivery red), and timed (yellow at 10 minutes, red at 15).
Restaurants using KDS report 15-20% faster ticket times, 30-50% reduction in kitchen errors, and the ability to analyze prep times by station, item, and time of day. That data is invisible with paper tickets.
KDS Setup: Hardware and Configuration
Hardware options: (1) Commercial kitchen displays ($800-1,500 each, grease/heat/splash rated, IP65), (2) Consumer tablets in protective cases ($300-600, works for low-volume kitchens), (3) Old monitors with bump bars ($200-400, budget option).
Station routing is the key feature. In a typical setup: Station 1 (grill) sees only grill items. Station 2 (fry) sees fry items. Station 3 (salad/cold) sees cold items. Expo station sees all items and marks orders complete. This means each cook only sees their own work — no confusion.
Connectivity: Hardwired ethernet is best for kitchen environments (WiFi can drop in metal-heavy kitchens). Run a single CAT6 cable to each screen location. KwickOS KDS works on any screen with a browser and supports both wired and wireless connections with automatic offline queuing if the network drops.

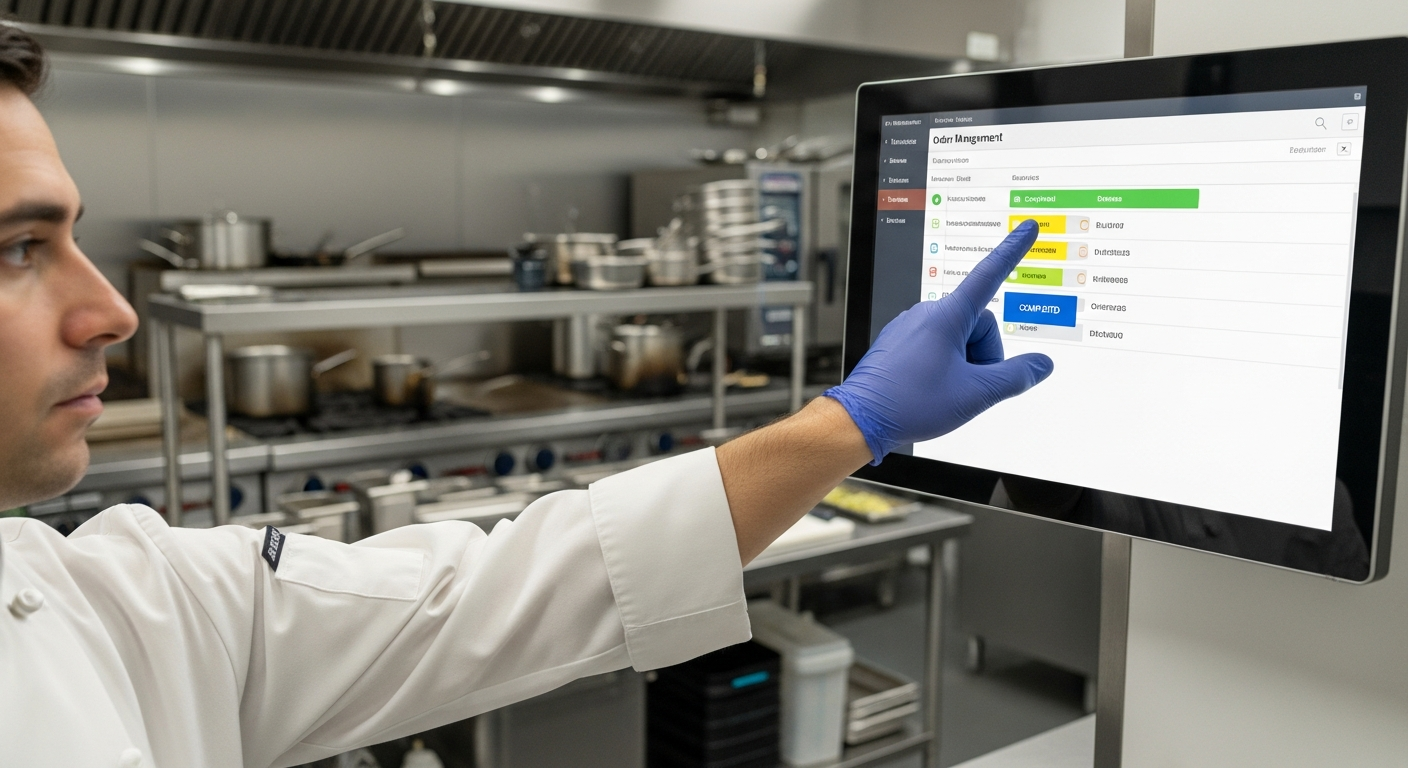

Placement: mount screens at eye level (5-5.5 feet), away from direct heat sources, angled slightly downward. Use anti-glare screens or matte protectors. Sound alerts should be loud enough to hear over kitchen noise — most systems support configurable beep patterns per order type.
KDS Features That Actually Matter
Order timing and alerts: The single most important feature. Good KDS systems show elapsed time per order with color changes at configurable thresholds. This creates urgency without yelling. If your average ticket time target is 12 minutes, set yellow at 10 and red at 13.
All-day counts: Shows how many of each item are needed across all open orders. 'All day: 4 burgers, 2 salmon, 6 fries.' This helps the grill cook batch-fire proteins instead of cooking one-at-a-time. Saves 20-30% in cook time during rushes.
Course firing: For full-service restaurants, KDS can hold courses until the server fires them. Appetizers go immediately, entrees hold until the server taps 'Fire Course 2.' This replaces the verbal 'fire table 12' system that gets lost in noise.
Recall and modification: When a server modifies an order, the KDS highlights the change in a different color. No more ambiguity about whether the kitchen saw the mod. Voided items show with a strikethrough so cooks know to stop if they haven't started.
ROI: Measuring Your KDS Investment
Typical KDS investment for a 3-station kitchen: $1,500-4,000 for hardware + $0-100/month for software (many POS systems include KDS free). Payback period: 2-4 months based on error reduction alone.
Error cost math: If 3% of orders have errors (industry average is 5-8% with paper tickets), and your average ticket is $35, a busy restaurant doing 200 orders/day loses $210/day to remakes and comps. Cutting errors to 1% saves $140/day = $4,200/month.
Speed improvement: 15% faster ticket times on 200 orders/day at $35 average = ability to serve 30 more covers during peak hours. At a conservative $25 average per additional cover, that's $750/day in added revenue capacity during peak times.
Hidden ROI: KDS data shows which station is your bottleneck, which items take longest, and which cooks are fastest. This informs staffing, menu design, and training decisions. KwickOS includes built-in KDS analytics with no additional subscription — station performance, item prep times, and rush hour patterns all in one dashboard.
